Multi-Sample Dilatometer | Four-Sample Simultaneous Thermal Expansion Analysis

L75 PT Quattro Multi-Sample Dilatometer

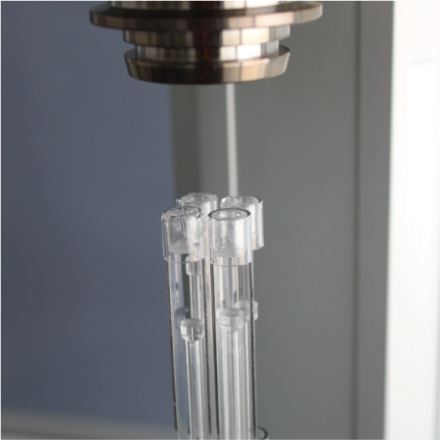

The L75 PT Quattro multi-sample dilatometer is specifically designed for high-throughput thermal expansion testing. It is equipped with four independent dilatometric sensors, enabling the simultaneous measurement of four specimens, or one reference sample together with three unknown samples. This design significantly improves testing efficiency and laboratory productivity, making it ideal for research laboratories, academic institutions, and quality control applications.

Key Features

• Simultaneous Multi-Sample Measurement: Four independent sensors allow parallel testing of up to four samples, greatly increasing throughput.
• Automatic Furnace Lifting: After each test, the furnace lifts automatically, allowing sample replacement during cooling and minimizing downtime.
• Highly Scalable Design: Optional second or third furnaces can be added to further increase sample processing capacity.
• High-Resolution Measurement: Resolution down to 0.125 nm, suitable for precise thermal expansion analysis.
• Multiple Atmosphere Operation: Supports inert, reducing, oxidizing, vacuum, static, and dynamic atmospheres.

Applications

• Glass and Ceramics: Measurement of coefficient of thermal expansion (CTE), softening point, and sintering behavior.
• Ceramics and Powder Metallurgy: Simulation of sintering processes for process optimization.
• Polymer Materials: Evaluation of thermal expansion characteristics and quality control parameters.
• Metals and Alloys: Analysis of thermal expansion behavior and material design parameters.

Technical Specifications
