Horizontal Dilatometer (DIL) | High-Precision Thermal Analysis System

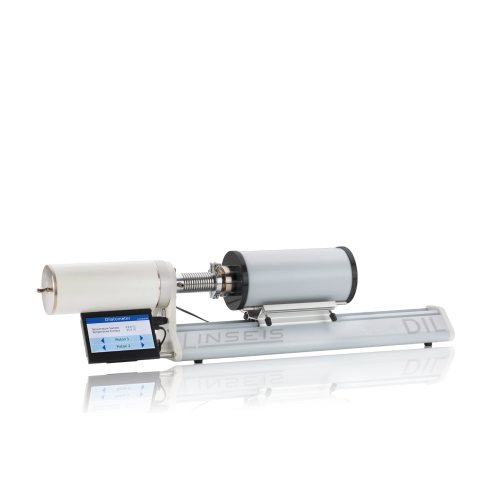

This system is a high-precision horizontal dilatometer (DIL) designed to measure the coefficient of thermal expansion (CTE), phase transition temperatures, sintering behavior, and high-temperature dimensional stability. It is suitable for R&D and quality control of ceramics, metals, composites, and other advanced materials. The L75 PT HS/HD series is specifically developed for academic research and laboratory applications, supporting thermal expansion measurements of solid, powder, and liquid samples.

Measurement Capabilities

Coefficient of thermal expansion (CTE) measurement
Thermal analysis and high-temperature dimensional change measurement
Analysis of phase transitions, sintering behavior, thermal decomposition, and glass transition temperature
Optional horizontal or vertical measurement configurations
Single-rod or dual-rod LVDT measurement modules

Key Features

High-precision measurement: Testing can be performed under vacuum, oxidizing, or reducing atmospheres.
Automatic force control: Adjustable contact force from 10 to 1000 mN for different sample types.
Multi-functional thermal analysis: Includes CTE, linear expansion, physical expansion, sintering temperature, softening point, and glass transition temperature.
Flexible furnace options: Multiple furnace types available from low temperature to ultra-high temperature ranges.
Chinese-language software interface: User-friendly operation with data export to Excel.

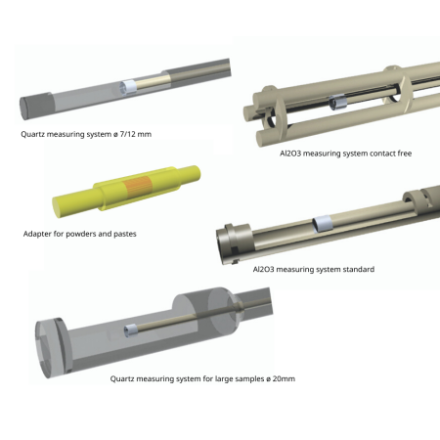

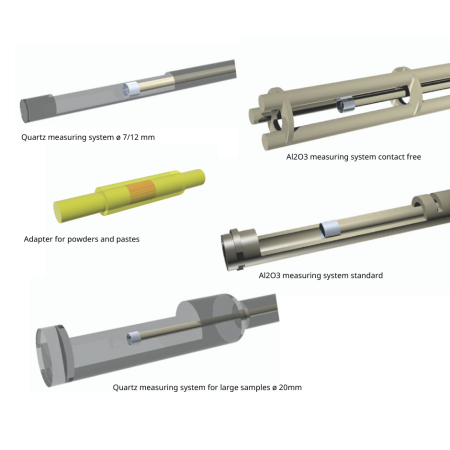

Wide range of optional sample holders and gas control modules.

Available Furnace Temperature Ranges

Low-temperature configuration: -180°C to +500°C
High-temperature configuration: Room temperature (RT) to 2000°C

Frequently Asked Questions (FAQ)

Q: Can the DIL be operated with atmosphere control?
A: Yes. Most models support vacuum and protective gas atmospheres such as nitrogen and argon, making them suitable for sensitive sample measurements.

Q: What sample sizes can be measured?

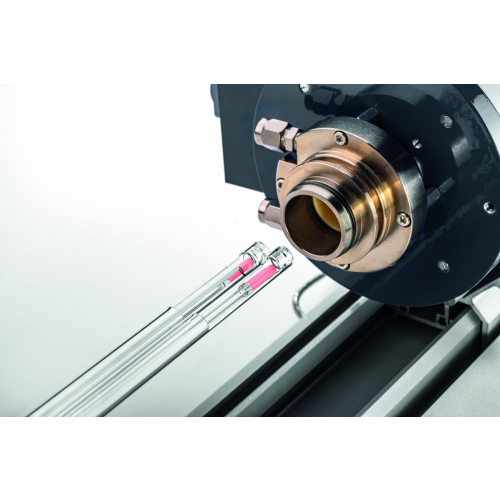

A: Standard samples are rod-shaped with diameters of Ø6–20 mm. Customized sample holders or push rods can be provided upon request.
