Powerful VOC Detector — Real-Time, Multi-Gas, High-Accuracy Monitoring Solution
- The only gas detector that combines real-time measurement, portability, and high accuracy
- Simultaneous detection of up to 14 gases at ppb levels (or customized gas configurations)
- Supports both fixed installation and mobile monitoring modes
- User-friendly operation with low maintenance requirements
- Integrated 3G / GPRS communication for real-time data transmission
- Suitable for VOC concentration monitoring in a wide range of working environments
- No frequent calibration required, resulting in very low maintenance cost

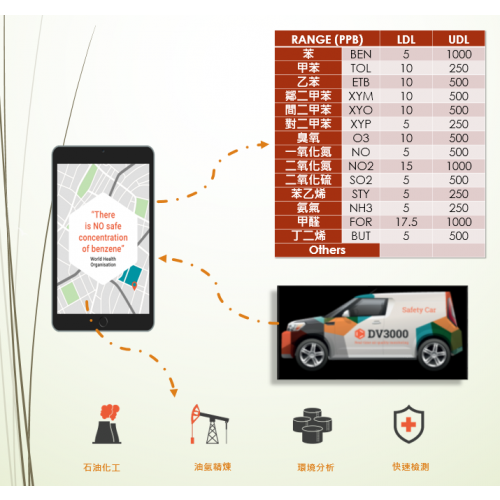

Feature 1: Mobile Data Capability
- Real-time gas detection and analysis
- Built-in GPS for automatic data mapping
- Supports remote access to offline data
Feature 2: ppb-Level Detection Limit
- High-sensitivity detection for multiple VOC gases
- Suitable for both fixed-site monitoring and mobile inspection
- High cost-performance ratio, ideal for long-term deployment
VOC Detection Ranges (ppb Level)
| Gas | Code | LDL (ppb) | UDL (ppb) |
|---|---|---|---|
| Benzene | BEN | 5 | 1000 |
| Toluene | TOL | 10 | 250 |
| Ethylbenzene | ETB | 10 | 500 |
| m-Xylene | XYM | 10 | 500 |
| o-Xylene | XYO | 10 | 500 |
| p-Xylene | XYP | 5 | 250 |
| Ozone | O₃ | 10 | 500 |
| Nitric Oxide | NO | 5 | 500 |
| Nitrogen Dioxide | NO₂ | 15 | 1000 |
| Sulfur Dioxide | SO₂ | 5 | 500 |
| Styrene | STY | 5 | 250 |
| Ammonia | NH₃ | 5 | 250 |
| Formaldehyde | FOR | 17.5 | 1000 |
| Butadiene | BUT | 5 | 500 |
